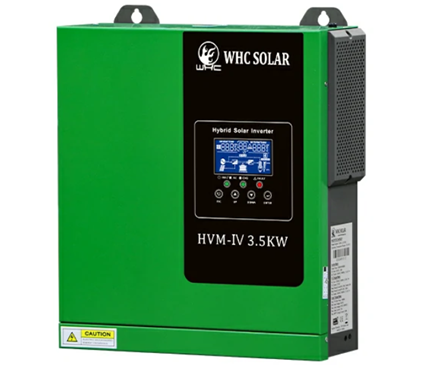

3.5KW Single Phase Solar Hybrid Inverter

Our 3.5KW Single Phase Solar Hybrid Inverter provides a highly resilient, modern power management infrastructure engineered to balance domestic residential energy loads efficiently.

This versatile smart balancing hub smoothly coordinates power allocation between photovoltaic panel strings, stationary battery banks, and public utility networks. Equipped with an advanced pure sine wave micro-processor core, it supports multiple prioritized output operations while utilizing a detachable dust management cover to completely protect delicate circuitry profiles from ambient tropical elements.

Key Functional Assets

Battery Wake-up

Features built-in smart initialization loops to instantly revive deep-sleep protection states inside storage cells via solar or grid inputs.

Integrated 60A-100A MPPT

Incorporates an internal 60A to 100A Maximum Power Point Tracking controller to guarantee continuous, optimized photovoltaic extraction curves.

Battery Wake-up Function

Equipped with specialized initialization firmware designed to safely awaken or re-engage lithium storage blocks from deep sleep protection states using active PV inputs or grid lines.
Pure Sine Wave Output

Generates a clean, low-harmonic sinusoidal output wave matching commercial utility standard parameters, preventing thermal stress or performance drops on appliances.
High-Voltage 500 Vdc Max PV Input

Supports an expansive photovoltaic input voltage threshold up to 500 Vdc max, facilitating streamlined high-voltage serial string configurations for rooftop networks.
Built-in MPPT 60A-100A Solar Controller

An integrated smart 60A to 100A tracking mechanism continuously maximizes extraction efficiency from connected arrays under varying sunlight conditions.
Detachable Dust Cover for Harsh Environments

Includes a removable anti-dust mesh filter plate engineered to shield critical internal processing modules from dust ingress and high maritime humidity issues.
Wifi Remote Monitoring (Optional)

Supports optional Wi-Fi data-logging attachment components to allow property owners to review tracking metrics and system parameters remotely.
Multi-Output Priority Balancing (UTL, SOL, SBU, SUB)

Provides smart supply priority programming rules, allowing operators to prioritize system power distribution across Utility (UTL), Solar (SOL), Solar-Battery-Utility (SBU), or Solar-Utility-Battery (SUB) paths.
EQ Equalization Software Optimization

Runs automated cell equalization charging steps regularly to reverse internal plate sulfation trends, balancing internal parameters and extending storage lifecycle boundaries.

Core System Architecture
Rated Output Power	3.5KW / 3500VA
Waveform Wave Core	Pure Sine Wave Output
Solar Charger Technology	Built-In MPPT (Maximum Power Point Tracking)
Max PV Open Circuit Voltage	500 Vdc Max Input Window
Rated Tracking Current Range	60A - 100A Controller Selection
Priority Routing Options	Configurable UTL (Utility), SOL (Solar), SBU (Solar-Battery-Utility), SUB (Solar-Utility-Battery)
BMS Optimization Feature	Automated EQ Battery Equalization Software Loop & Lithium Wake-up Block
Environmental Ingress Shield	IP54 Certified with Removable Anti-Dust Faceplate Shield
Designed Structural Lifespan	Up to 20 Operating Lifespan Years
Commercial Warranty Protection	3 Years Full Local Factory Warranty Plan

Core System Architecture

Rated Output Power

3.5KW / 3500VA

Waveform Wave Core

Pure Sine Wave Output

Solar Charger Technology

Built-In MPPT (Maximum Power Point Tracking)

Max PV Open Circuit Voltage

500 Vdc Max Input Window

Rated Tracking Current Range

60A - 100A Controller Selection

Priority Routing Options

Configurable UTL (Utility), SOL (Solar), SBU (Solar-Battery-Utility), SUB (Solar-Utility-Battery)

BMS Optimization Feature

Automated EQ Battery Equalization Software Loop & Lithium Wake-up Block

Environmental Ingress Shield

IP54 Certified with Removable Anti-Dust Faceplate Shield

Designed Structural Lifespan

Up to 20 Operating Lifespan Years

Commercial Warranty Protection

3 Years Full Local Factory Warranty Plan
