Archimedes Liam-F1 Wind Turbine

Urban Micro-Climate Solutions

Liam-F1 Wind Turbines

Reliance Green Energy Pte Ltd supplies the cutting-edge Archimedes Liam-F1 Wind Turbine Series in Singapore.

Engineered with a nautilus-inspired, 3-blade aerodynamic spiral design, these compact urban micro-turbines capture multi-directional wind flows with near-silent operation.

Unlike conventional wind generators that need high open-field winds, the Liam-F1 features an ultra-low startup threshold under 1.0 m/s. It seamlessly generates clean power from ambient breezes, thermal updrafts, and continuous exhaust streams.

Each unit includes smart electromagnetic braking and automated load relief to safely withstand continuous wind speeds up to 36 m/s and peak gusts up to 45 m/s.

Key Deployment Areas:
HDB Balconies & Apartment Aircon Exhaust Outlets
Industrial Cooling Towers & Factory Vents
Shopping Malls & Commercial High-Rise Rooftops

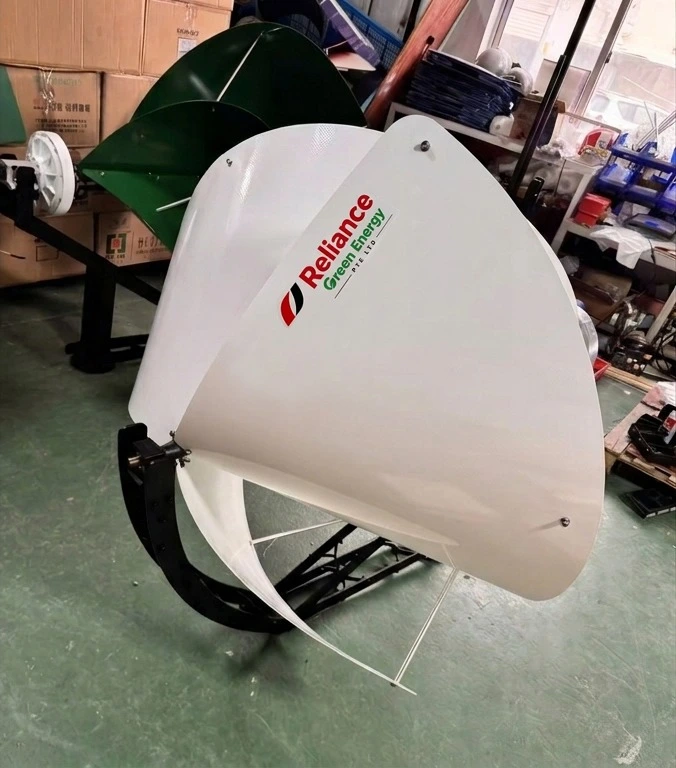

Archimedes Liam-F1 Urban Spiral Wind Turbine Supplied by Reliance Green Energy Pte Ltd Singapore
Models Avialble

Liam-F1 Wind Turbines Models

Reliance Green Energy Pte Ltd supplies the Archimedes Liam-F1 Wind Turbine Series—including the R-600 (500W), R-1200 (2000W), and R-1600 (5000W)—in Singapore. These high-efficiency wind turbines are built to capture airflow and generate micro-power across HDB balconies, apartment aircon exhaust ducts, shopping malls, and factory cooling towers.

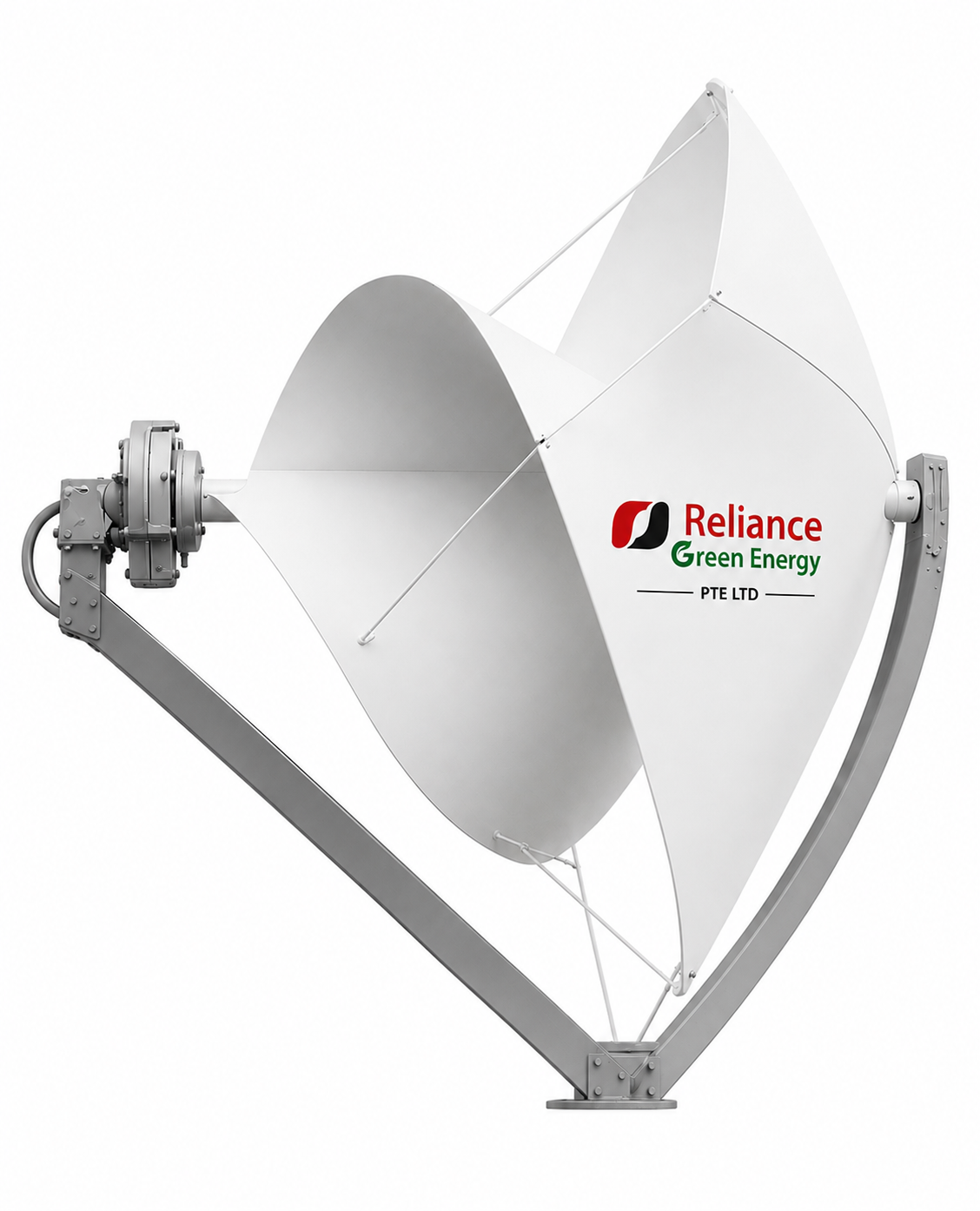

Archimedes Liam-F1 Model R-600 Blueprint

Liam-F1 Model R-600

500W Rated Capacity

Engineered for lightweight installations, residential roof layouts, HDB balconies, and apartment air conditioning duct exhausts. Features an ultra-low startup wind threshold to harvest power from micro-drafts.

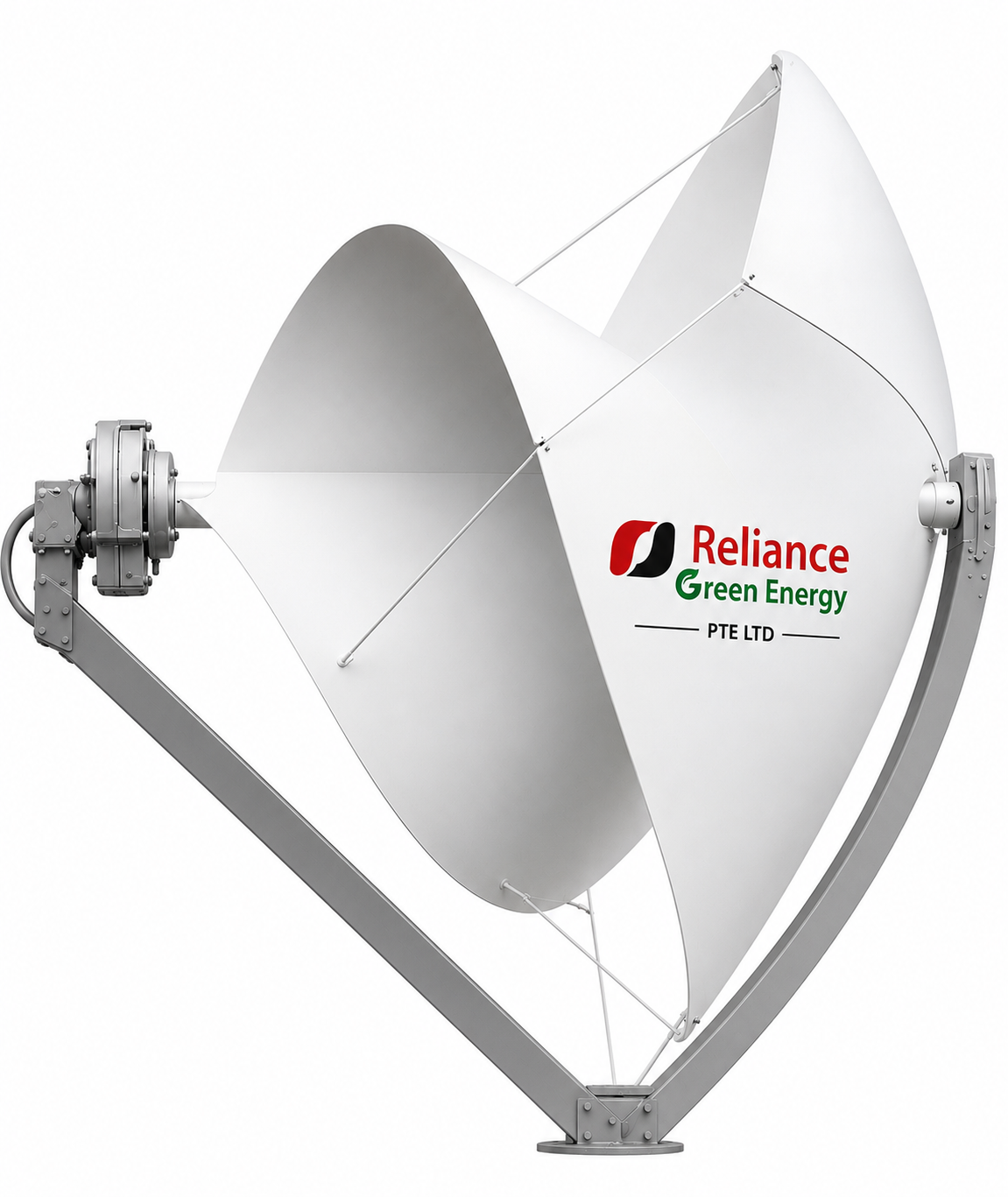

Archimedes Liam-F1 Model R-1200 Dimensions

Liam-F1 Model R-1200

2000W (2kW) Rated Capacity

Our benchmark urban generator, designed to bridge commercial shopping mall rooftops, institutional facilities, and residential blocks to harvest steady ambient wind gusts and rooftop thermal updrafts.

Archimedes Liam-F1 Model R-1600 System

Liam-F1 Model R-1600

5000W (5kW) Rated Capacity

Heavy-duty micro-power build optimized for dense high-velocity structural draft sources like industrial factory cooling towers, central HVAC exhaust vents, and severe coastal micro-climates.

Safety & Engineering Protection

Integrated Safety Control Standards

Overspeed Control Mechanism

Dual automated electromagnetic braking logic engages dynamically if ambient drafts breach peak thresholds to prevent generator damage.

Overload Protection Rules

Bypasses harmful structural resonance or grid overload events instantly through combined electromagnetic braking circuits and automated internal load-relief structures.

Data Sheets

Technical Specifications Matrix

Direct side-by-side engineering comparison between the Archimedes Liam-F1 R-600 urban micro-generator, the R-1200 commercial rooftop model, and the R-1600 heavy-duty flagship powerhouse.

Parameter Variable Model: R-600 Model: R-1200 Model: R-1600
Product Classification Vertical Wind Turbine Vertical Wind Turbine Vertical Wind Turbine
Rated Operational Power 500W 2000W 5000W
Peak Power Threshold 550W 2050W 5050W
Starting Wind Velocity < 1.0 m/s < 1.0 m/s < 1.0 m/s
Cut-in Wind Threshold < 3.0 m/s < 3.0 m/s < 3.0 m/s
Rated Wind Velocity 13 m/s 13 m/s 13 m/s
Maximum Safe Draft Speed ≤ 36 m/s
(Instantaneous ≤ 45 m/s)		 ≤ 36 m/s
(Instantaneous ≤ 45 m/s)		 ≤ 36 m/s
(Instantaneous ≤ 45 m/s)
Rated DC Working Voltage 12V / 24V 24V / 48V 12V / 24V / 48V / 96V
Rotor Wheel Diameter 0.6 m 1.2 m 1.6 m
Turbine Assembly Length 0.8 m 1.4 m 1.8 m
Package Dimensions — — 1550 * 1610 * 1860 mm
Net / Gross Weight 45 kg 137 kg 190 kg
(Gross Weight)
Blade Component Count 3 Blades 3 Blades 3 Blades
Stator Protection Class IP54 IP54 IP54
Working Temperature Band -25°C to +45°C -25°C to +45°C -25°C to +45°C
Max Environment Humidity Turbine ≤ 90%
Controller/Inverter ≤ 80%		 Turbine ≤ 90%
Controller/Inverter ≤ 80%		 Turbine ≤ 90%
Controller/Inverter ≤ 80%
Maximum Operating Altitude ≤ 4500 m < 4500 m ≤ 4500 m
Overspeed / Overload Safety Electromagnetic Brake Electromagnetic Brake Electromagnetic Brake
or Load Relief
Micro-Power Applications in Singapore

How Archimedes Liam-F1 Power Singapore Facilities

Engineered with an ultra-low startup threshold (< 1.0 m/s) and a silent nautilus-spiral blade design, the Archimedes Liam-F1 converts continuous urban airflow into clean, reliable energy across diverse Singapore environments.

Residential Homes & HDBs

Micro-Draft Energy Capture
  • Aircon Exhaust Harvesting: Captures high-velocity wind forced out by home A/C condenser units to offset cooling electricity costs.
  • Balcony & Rooftop Friendly: Compact footprint (Model R-600) easily mounts on high-rise balconies, service yards, and landed home roofs.
  • Near-Silent Operation: Operates quietly under 45dB, preventing noise disturbance in high-density living areas.
Model R-600 Ideal

Cooling Towers & Vents

Waste Energy Recovery
  • Continuous Exhaust Power: Mounted directly over industrial cooling tower fans to capture continuous high-speed discharge air.
  • HVAC Energy Recirculation: Recovers wasted mechanical kinetic energy from large chiller plants and factory ventilation systems.
  • Heavy-Duty Reliability: Heavy-duty model variants (R-1200 / R-1600) are engineered to safely handle high-velocity continuous air draft loads.
Model R-1200 / R-1600

Shopping Malls & Buildings

Rooftop Updraft & Green Mark
  • Facade Updraft Generation: Captures strong thermal rising air currents that travel upward along commercial high-rise building facades.
  • Base Load Power Offset: Feeds generated power straight back to common-area LED lighting and building maintenance systems.
  • BCA Green Mark Support: Helps building owners earn valuable sustainability credits by implementing micro-wind energy harvesting.
BCA Green Mark Compatible
Get Expert Advice

Talk to Our Team About the Archimedes Liam F1 Wind Turbine Series

Our team will help you inspect your space and design the best solar and wind energy system for your home or business.

Key Advantages
  • Starts spinning easily even in light city breezes.
  • Fits securely on both flat concrete rooftops and metal frames.
  • Built-in automatic safety brakes protect the unit during strong storms.

Request More Information

Contact our Singapore team today for site evaluations and pricing details.

Office & Showroom

7030 Ang Mo Kio Ave 5, #08-16 Northstar @AMK, Singapore 569880

Singapore Commercial Wind Energy

Turn Existing Airflow Into a Renewable Energy Opportunity

Assess whether airflow already produced by your cooling towers or mechanical ventilation system can support an engineered Liam-F1 Wind Turbines into wind-energy application.

  • Cooling Tower, Aircon, HVAC & Exhaust Airflow Assessment
  • Assessment of cooling-tower discharge, aircon exhaust, HVAC vents, industrial exhaust and other suitable airflow sources
  • Singapore-based project and engineering support

Assess Your Site for a Liam-F1 Wind Turbine

Share your site and airflow details and send your Liam-F1 assessment request directly to Reliance Green Energy via WhatsApp.

Your completed details open in WhatsApp ready to send to +65 9388 2202.
Singapore BasedLocal commercial support
Flagship R-16005kW commercial model
Real ApplicationCooling-tower airflow recovery
Site SpecificEngineering-led assessment
Why Assess Your Airflow Sources?

Turn Existing Industrial Airflow Into an Energy Opportunity

Instead of treating cooling-tower discharge airflow only as waste, assess whether suitable airflow can support an engineered energy-recovery application.

Cooling tower airflow
↻

Recover Existing Airflow

Explore energy recovery from airflow your facility is already producing.

Site engineering for wind turbine
⚙

Engineered Around Your Site

Review airflow, turbine positioning, structures, deflectors and electrical integration.

Installed wind turbine
✓

From Assessment to Installation

Suitable projects can progress from initial review to engineering, commissioning and handover.

Liam-F1 Model R-1600 5kW vertical axis wind turbine
Flagship Commercial Wind Turbine

Archimedes Liam-F1 Model R-1600 5000W / 5kW Wind Turbine

A heavy-duty vertical-axis wind turbine for commercial and industrial applications including cooling towers, mechanical exhaust streams, factory HVAC systems and commercial rooftops in Singapore.

Rated Power5000W / 5kW
Maximum Power5050W
Rotor Diameter1.6 m
Starting Wind Speed< 1.0 m/s
Rated Voltage12 / 24 / 48 / 96V
Generator ProtectionIP54
ASSESS MY SITE →VIEW R-1600 DETAILS
Commercial Applications in Singapore

Where Archimedes Liam-F1 Wind Turbines Can Be Applied

Liam-F1 wind turbines can be evaluated around different airflow opportunities—including cooling-tower discharge, aircon condenser exhaust, HVAC and ventilation outlets, warehouse or factory exhaust fans, rooftop wind and other recurring airflow sources.

APPLICATION 01

HDBs & Apartments

Balconies, service yards and outdoor aircon compressor areas can be assessed for compact Liam-F1 installations using available ambient or condenser airflow.

APPLICATION 02

Commercial Buildings & Malls

Rooftops, HVAC areas and mechanical ventilation systems can be evaluated for suitable Liam-F1 airflow energy-recovery opportunities.

APPLICATION 03

Aircon & HVAC Exhaust

Aircon condenser discharge, chiller and HVAC exhaust airflow can be reviewed for the Liam-F1 model best suited to the available airflow and installation space.

APPLICATION 04

Factories & Warehouses

Mechanical ventilation, warehouse exhaust fans and recurring industrial airflow can be assessed for engineered Liam-F1 turbine integration.

APPLICATION 05

Industrial Airflow Sources

Large cooling-tower discharge airflow can be technically assessed for R-1600 installations, including positioning, deflectors, structure and electrical integration.

APPLICATION 06

Clubs, Churches & Institutions

Facilities with rooftop aircon systems, function halls, kitchens and ventilation exhaust can be reviewed for suitable Liam-F1 applications.

Successfully Installed in Singapore

Infineon Singapore Cooling-Tower Liam-F1 R-1600 Project

A real commercial installation by Reliance Green Energy showing how the Liam-F1 Model R-1600 can be engineered around large industrial cooling towers to recover available discharge airflow.

● REAL PROJECT • INFINEON SINGAPORE
SUCCESSFULLY INSTALLED IN SINGAPORE

Real Liam-F1 R-1600 Cooling-Tower Installation at Infineon Singapore

Reliance Green Energy completed a dual Liam-F1 Model R-1600 installation at Infineon Singapore cooling towers. The project demonstrates how existing cooling-tower discharge airflow can be evaluated and engineered as an energy-recovery opportunity.

✓ 2 Liam-F1 R-1600 turbines installed for the commercial cooling-tower application.
✓ Specially designed wind deflectors guide available discharge airflow toward the turbine rotors.
✓ Site-specific engineering covers positioning, mounting structure, controller, wiring and commissioning.
✓ Commercial proof in Singapore gives facility owners a real reference for evaluating similar sites.
VIEW FULL INFINEON PROJECT → ASSESS MY FACILITY
2R-1600 TURBINES
5kWRATED MODEL CAPACITY
1.6mROTOR DIAMETER
SingaporeCOMMERCIAL DEPLOYMENT
Liam-F1 turbine transported to project site Mounting foundation for Liam-F1 R-1600 project Infineon cooling tower site preparation Galvanised turbine mounting structure Cooling tower wind deflector engineering Wind deflector installed at cooling tower project

Have a Suitable Airflow Location?

Use the Infineon Singapore installation as proven project reference and let Reliance Green Energy assess your site for a suitable Liam-F1 application.

REQUEST LIAM-F1 SITE ASSESSMENT →
Liam-F1 Application Demonstrations

See How Archimedes Liam-F1 Wind Turbines Can Work Around Existing Airflow

Beyond industrial cooling towers, Archimedes Liam-F1 Wind Turbines can be evaluated around other recurring airflow sources such as air-conditioning discharge, mechanical ventilation, exhaust outlets and suitable rooftop airflow.

APPLICATION DEMONSTRATION
Sports & Recreation Facilities

Sports Complex – Aircon & Ventilation Airflow

Sports complexes can operate multiple air-conditioning, ventilation and exhaust systems across indoor halls, gyms, changing rooms and other high-occupancy areas. These recurring airflow sources can be assessed for suitable Liam-F1 wind turbine applications.

Aircon Condenser Discharge
Recurring airflow produced while cooling systems are operating.
Mechanical Ventilation
Ventilation airflow serving indoor sports halls and large occupied spaces.
Rooftop & Exhaust Areas
Suitable rooftop wind and exhaust locations can be reviewed for turbine positioning.
APPLICATION DEMONSTRATION
Churches & Places of Worship

Churches – Aircon & Exhaust Airflow

Churches and large places of worship may operate air-conditioning and ventilation systems for worship halls, auditoriums, offices and community spaces. Existing airflow around these systems can be evaluated for suitable Liam-F1 applications.

Aircon Exhaust Airflow
Airflow available around outdoor condenser units while cooling systems operate.
Hall Ventilation Systems
Mechanical ventilation serving large worship halls and gathering spaces.
Rooftop Installation Areas
Rooftop areas can be reviewed together with available wind, aircon and exhaust airflow.
Site-Specific Assessment

Have Aircon, Ventilation or Exhaust Airflow at Your Facility?

Share your site with Reliance Green Energy. We can review the available airflow source, operating conditions and installation area to identify a suitable Liam-F1 model and installation approach.

REQUEST SITE ASSESSMENT
Lead-to-Project Process

From Site Enquiry to Engineering Recommendation

A simple assessment path for homes, buildings and commercial or industrial facilities evaluating the Liam-F1 wind turbine series.

STEP 01

Share Facility Details

Tell us about your site, available airflow source, installation area and operating profile.

STEP 02

Preliminary Review

We review your application and the available airflow information.

STEP 03

Site Engineering

Suitable opportunities progress to positioning, structure and integration review.

STEP 04

Commercial Proposal

Receive a project-specific recommendation and next-step proposal.

Reliance Green Energy Pte Ltd • Singapore

Could Your Existing Airflow Become Part of Your Clean-Energy Strategy?

Start with a site assessment and let our team review which Liam-F1 model and installation approach may be suitable for your location and available airflow.

REQUEST SITE ASSESSMENT →WHATSAPP +65 9388 2202

Frequently Asked Questions

The Archimedes Liam-F1 is a compact, high-efficiency vertical wind turbine featuring a nautilus-inspired 3-blade logarithmic spiral rotor. Unlike standard wind turbines that rely solely on open-field wind direction, the Liam-F1 captures multi-directional airflow, ambient urban drafts, thermal facade updrafts, and forced exhaust air from aircon units and industrial cooling towers.

  • Model R-600 (500W): Compact (0.6m diameter, 45kg) designed for HDB balconies, apartment service yards, and home A/C condenser exhaust harvesting.
  • Model R-1200 (2000W / 2kW): Mid-scale unit (1.2m diameter, 137kg) ideal for landed estate roofs, residential high-rises, and small commercial shophouses.
  • Model R-1600 (5000W / 5kW): Heavy-duty flagship (1.6m diameter, 190kg) engineered for shopping mall rooftops, factory air ducts, and industrial cooling towers.

The Archimedes Liam-F1 features an ultra-low starting wind speed threshold of under 1.0 m/s and a cut-in velocity under 3.0 m/s. This low start-up torque allows it to begin spinning easily in light city breezes and low-velocity tropical drafts typical in Singapore.

The turbine is engineered for near-silent operation, with acoustic output measuring below 45 dB. This low noise level ensures compliance with high-density residential living standards and quiet hours across Singapore apartments and HDB estates.

Yes! The Liam-F1 series is specifically built to integrate into Solar-Wind Hybrid Systems. While solar panels generate maximum power during sunny daylight hours, the wind turbine continues generating micro-power during overcast weather and night hours, feeding clean electricity directly into 12V, 24V, 48V, or 96V DC battery banks.

Every Liam-F1 unit includes a built-in automated electromagnetic safety brake and internal load-relief logic. It safely operates in continuous wind speeds up to 36 m/s and withstands peak instantaneous storm gusts of up to 45 m/s without mechanical damage.

You can contact the Reliance Green Energy Pte Ltd engineering team directly via telephone at +65 9388 2202, email karlkoh1818@gmail.com, or visit our local office and showroom located at 7030 Ang Mo Kio Ave 5, #08-16 Northstar @AMK, Singapore 569880.
