Intuitive Charging Indicator
Features a unique "Charging Indicator" display that allows users to intuitively understand the charging status and battery health, helping to avoid over-charging and over-discharging.
Robust Build Quality
Constructed with a high-grade Aluminum Magnesium Alloy Lamp Case and Gold Plated Plugs for superior corrosion resistance. The PC Outdoor Optical Lens ensures maximum light transmission.
Flexible Installation

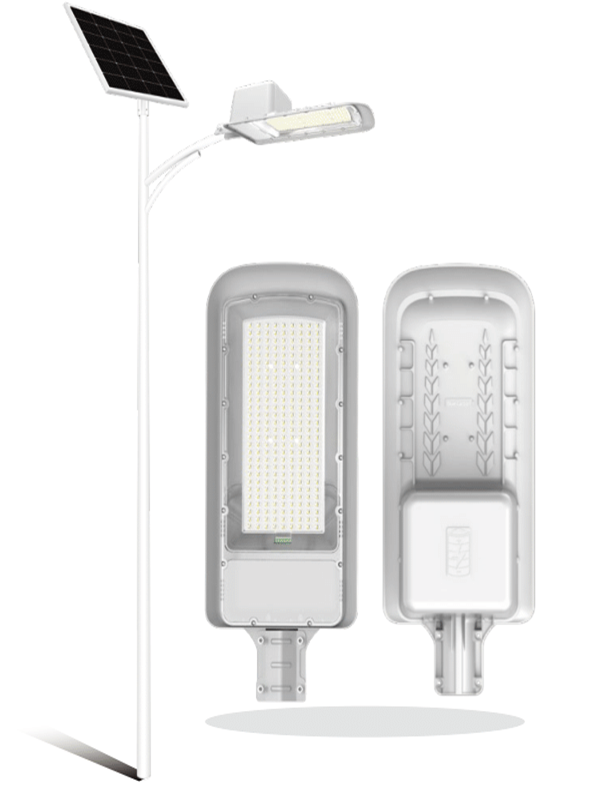

Designed for versatility with an adjustable solar panel angle. Suitable for Straight Pole, Holding Pole, and Wall-Mounted installation methods.
| Solar Panel | 5V / 160W (Mono) [Max Config] |
|---|
| Battery | 3.2V / 200±5Ah LiFePO4 Battery |
|---|
| Light Power | 9000 lm (Common 100W LED) |
|---|
| Installation Height | 10-12m |
|---|
| Installation Distance | 40-50m |
|---|
| Installation Way | Straight pole, Holding pole, Wall-mounted (Adjustable Angle) |
|---|
| Lighting Time | 6+X/Intelligent power control |
|---|
Product Size (Unit: mm)
High-precision dimensions for professional installation.
| Lamp Body Length | 711mm |
|---|
| Mounting Arm Height | 255mm |
|---|
| Lamp Body Width | 299mm (Approx) |
|---|
*Please refer to the technical diagram in the product specifications for detailed mounting specs.
