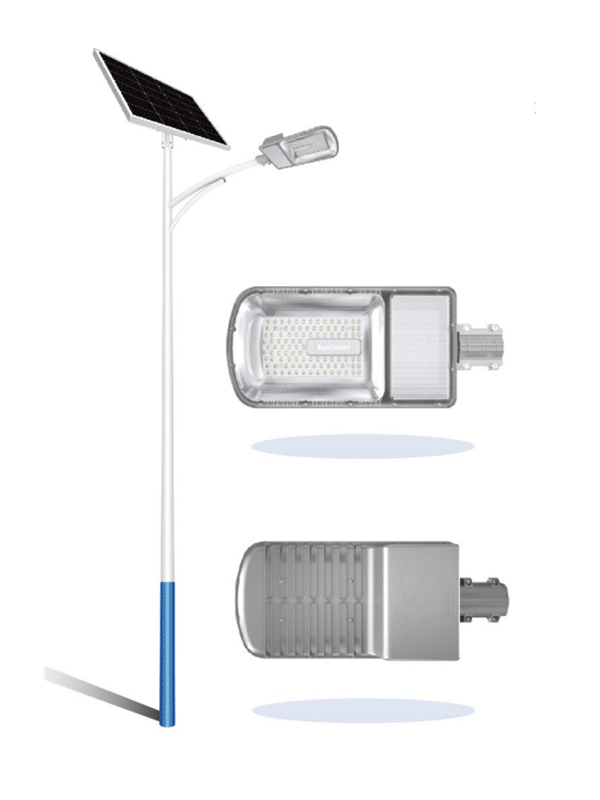

Adjustable Efficiency
Uniquely designed with an adjustable solar panel angle. This ensures the panel faces sunlight directly throughout the day for maximum charging efficiency, regardless of installation location.
Durability & Performance
Features a robust Aluminum Magnesium Alloy Lamp Case and Gold Plated Plugs for anti-corrosion protection. The imported high-lumen LED beads provide brilliant illumination (5400lm).
Flexible Installation
Supports multiple installation methods including Straight pole, Holding pole, and Wall-mounted installation, making it suitable for diverse environments.
| Solar Panel | 5V / 105W (Mono) [Max Config] |
|---|
| Battery | 3.2V / 70±5Ah LiFePO4 Battery |
|---|
| Light Power | 5400 lm (Common 50W LED) |
|---|
| Installation Height | 8-9m |
|---|
| Installation Distance | 35-40m |
|---|
| Installation Way | Straight pole, Holding pole, Wall-mounted (Adjustable Angle) |
|---|
| Lighting Time | 6+X/Intelligent power control |
|---|
Product Size (Unit: mm)
Accurate dimensions for planning your project.
| Lamp Body Length | 575mm |
|---|
| Lamp Body Width | 237mm |
|---|
| Mounting Arm Width | 251mm |
|---|
*Please refer to the technical diagram in the product specifications for detailed mounting specs.
